MAICO easyTymp Handheld Middle Ear Analyzer – Pro Version

MAICO easyTymp™ Pro

The easyTymp™ is the ideal handheld device for middle ear screening tests. All available test protocols can be easily selected with one hand. Available test protocols: tympanometry with 226 Hz; ipsi- and contralateral reflexes (automatic or single intensity), reflex decay measurements and eustachian tube testing (ETF). The optional high frequency probe tone of 1 kHz is ideal for providing reliable results when testing newborns.

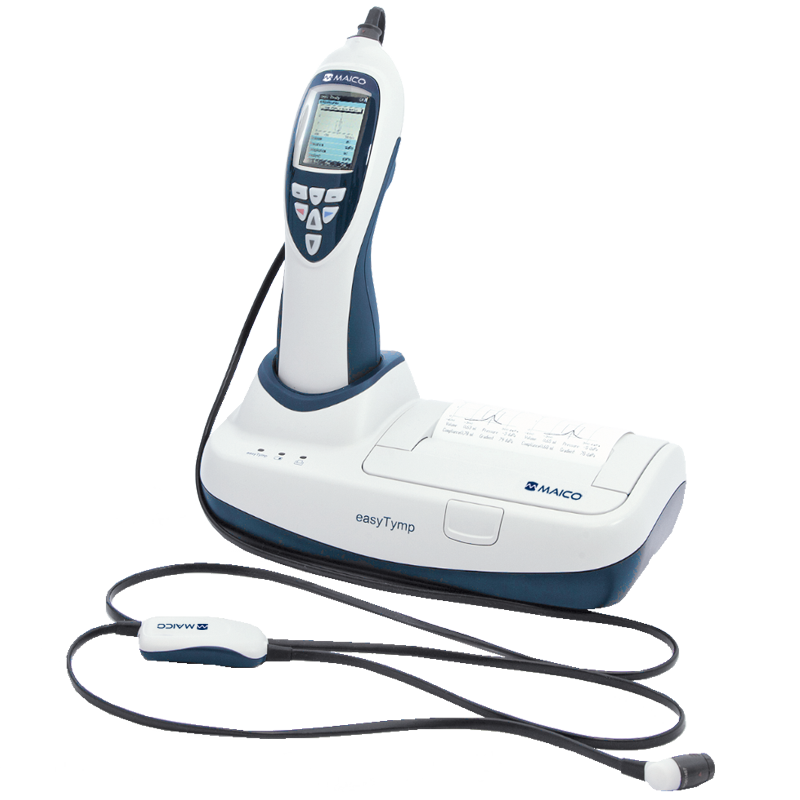

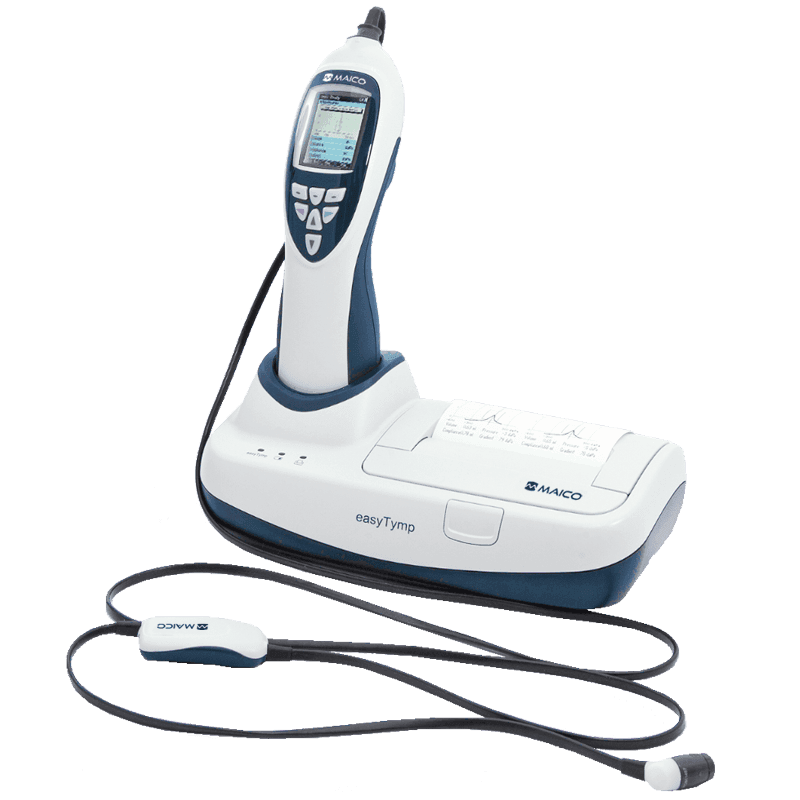

The easyTymp™ Pro Version cradle serves as a docking station and recharger. It is available as a version with eartip box or integrated printer.

Request a Quote

Features and downloads

  • Very fast and reliable impedance measurements
  • Probe tone 226 Hz, optional high frequency probe tone 1 kHz
  • Reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and contralateral)
  • Reflex decay testing (ipsi- and contralateral)
  • Eustachian tube function (ETF) test for intact and perforated eardrums

Learn more about easyTymp™ Pro
Download Datasheet
